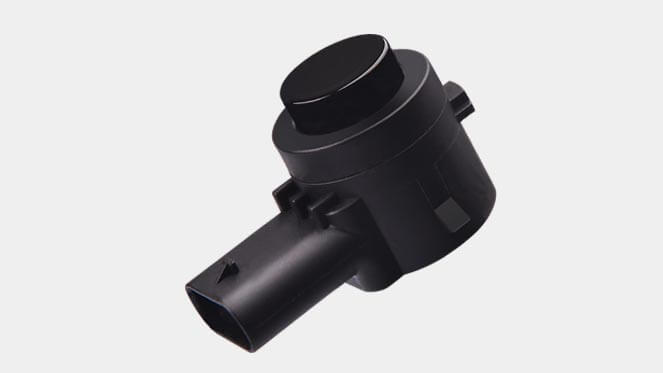

Ultrasonic Sensor (USS)

With both sound wave transmission and reception capabilities, featuring low latency and strong adaptability. It is widely used for front collision detection, automatic parking and speed limit recognition.



  • Available in 3/4/5/6/8-channel configurations, with or without a host system
  • Supports CAN communication protocol
  • Complies with AK1/AK2 ultrasonic sensor standards
  • Main chip: E524.17
  • Detection range: 10–700 cm
  • Detection angles: 90°–120° (horizontal), 60° (vertical)

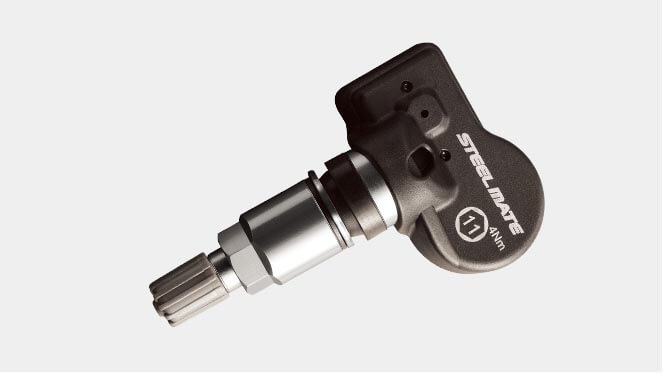

Tire Pressure Monitoring System (TPMS)

In real time while driving, providing alerts for air leaks, low or high pressure, and excessive temperature to enhance driving safety.



  • Automatic positioning algorithm
  • Compatible with RF/LF TPMS sensors (high and low frequency)
  • Supports Bluetooth BLE TPMS sensors
  • Complies with GB26149-2017 national standard
  • Designed to last 10 years or 150,000 km

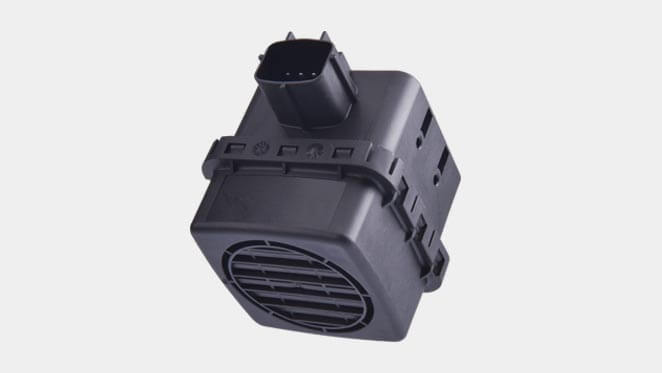

Acoustic Vehicle Alert System (AVAS)

Generates a designated sound when the vehicle is moving at low speeds, helping pedestrians detect approaching vehicles for improved safety.



  • Communication: CAN
  • Frequency range: 20Hz–20kHz
  • Sound level: 50–70dB (measured at 2m)
  • Standby current: <1mA
  • Maximum power: 20W
  • Operating temperature: -40°C to +105°C
  • Protection rating: IP67

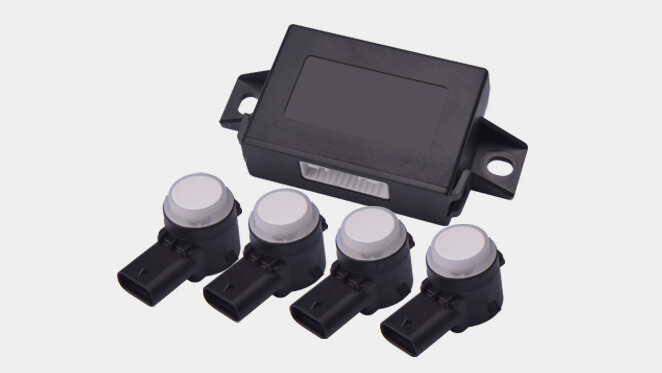

Parking Assist System (UPA)

Utilizes ultrasonic sensors for precise distance measurement, enhancing reverse parking safety. Supports various advanced parking features, including Automatic Parking Assist (APA), Remote Parking Assist (RPA), AI-powered self-learning parking (AI), and Autonomous Valet Parking (AVP)



  • Compatible with CAN/LIN architecture (with or without a host system)
  • Operating voltage: 9V–16V
  • Operating temperature: -40°C to +85°C
  • Detection range: 20–450 cm
  • Waterproof and dustproof rating: IP53
  • Communication: CAN protocol
  • System response time: ≤50ms
